SX-Dash Dashboard

The new compact and highly flexible dashboard or steering wheel display

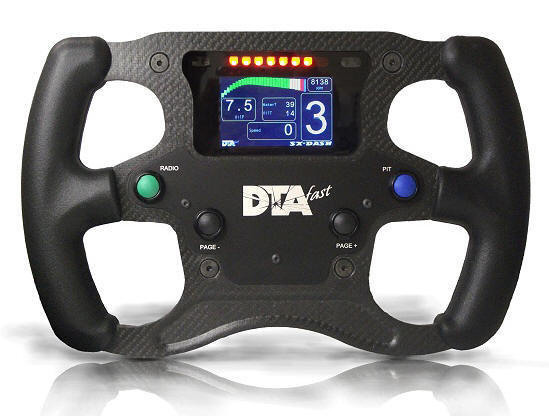

The SX-Dash display can be mounted in the racing wheel



SX-DASH Main Features



- crisp 400 x 240 pixel resolution
- 256 colors display
- high brightness, 470cd/m
- 6 sizes of text font available
- fully configurable bargraphs
- user Defined background images
- up to 8 User Defined screens
- up to 64 channels with User Defined alerts
- 12 configurable RPM orange leds
- 1 red alert LED
- 1 yellow alert LED

SX-Dash Technical Details



- temperature range : 10C to +70C
- voltage : 9.4V/18 V, 500 mA
- reverse battery protection
- IP58 water protection


- 8STA connector



Inputs:

- 1 x CAN (1M, rev 2.0)
- 1 x Digital for Lap Timer
- 1 x Digital Wheel speed, Hall or ABS sensor (4x optional)
- 1 x USB
- 1 x Day/Night (0-12V)
- 2 x Page Navigation Buttons (+ 2 extra button on the SX-Wheel)

Outputs:

- 1x 5V analogue 500mA (3x optional)
- 1x 12V aux 500mA (3x 200mA optional)
- 1x GND aux
- 4x low-side 100mA (optional)
- 1x GND analogue (5x optional)
